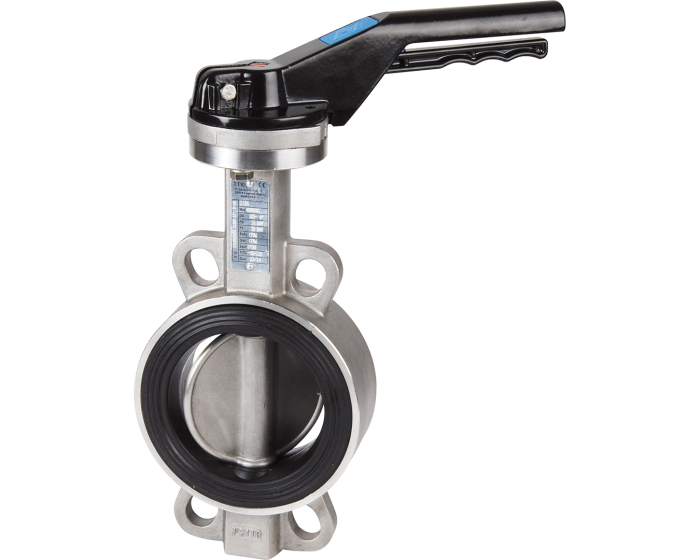

The 1184 series valve is a TTV wafer butterfly valve, with a stainless steel body and disc, and EPDM seat. It is specifically adapted to corrosive environments and places that require frequent cleaning.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | ISO 10631 - EN 593 |
| Type of paint | Rilsan |
| Paint coating thickness (µm) | 250.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Brand | TTV |
| Tightness test standard | EN 12266-1 Rate A |
| Type of seat | Removable |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Square, star (mm) | Square 8 mm |
| ATEX compatible | Yes |
| Torque (Nm) | 9 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Kv (m³/h) | 36.0 |
| Seat | EPDM |
| Body material | Stainless steel CF8M (1.4408) |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F05/F07 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 110 |
| TS min (°C) | -20 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1 & 21. 2 & 22 |
| Through shaft | Yes |
| Warranty period | 10 years |
| CE | Yes |
| Handle material | Aluminium |
